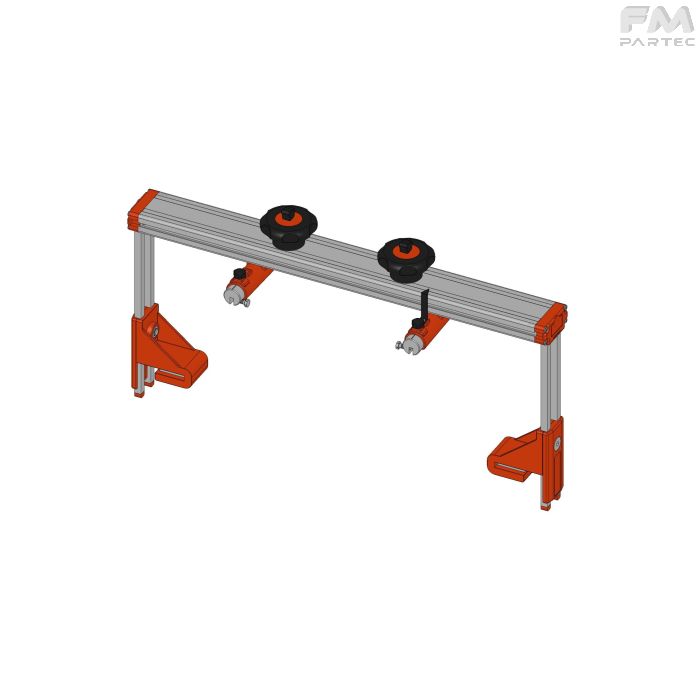

SRS-LH-DR - SRS Dual Independent Adjustment
FMPartec: Engineering & Moulding
FM Partec S.p.A.
FM Partec S.p.A.
General Information
Designed for lines with small frames, max. 1000mm, SRS was created for quick and easy size changeover.
This version has two knobs that allow independent adjustment of the two sides. Ideal for large frames where it would be impossible to reach the central knob.
It is possible to have customised min/max system opening dimensions and knob spacing.
At the bottom of the profile there is a rubber seal that does not allow glaze, dust or anything else to enter and block the movement mechanisms.
The rotating central unit (RCU) for gripping blades or roller conveyors also allows for tilting in case the top of the conveyed product does not need to be touched.
On the side of the head is an arrow indicating the direction of the lines. It is important to respect this when assembling as the two RCUs have a slight opening to facilitate the incoming material.
The Type A version is for L-frames. Also available in a Type B version for standard aluminium frames.
