SRS-AC-SU-1010 - Support 50-53-90 for extrusions

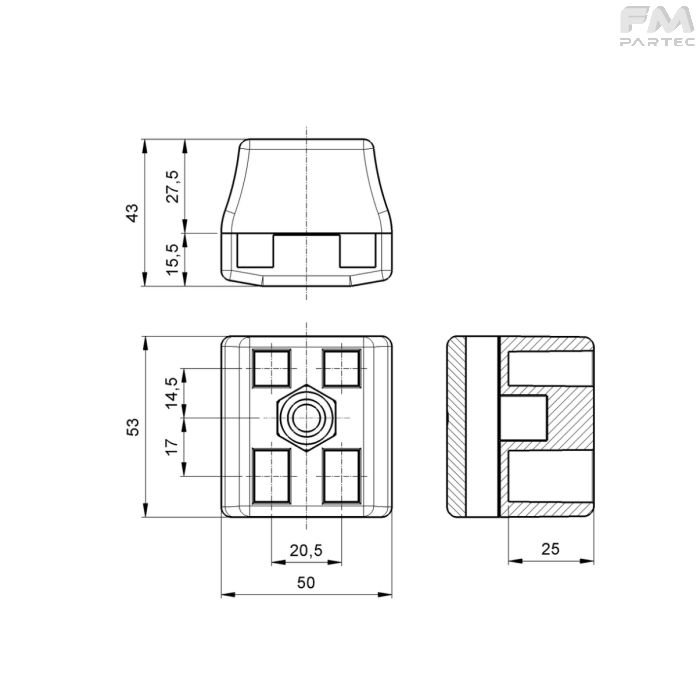

Disegno tecnico SKU SRS-AC-SU-1010
SRS-AC-SU-1010 - Support 50-53-90 for extrusions
© Copyright 2026
FM Partec S.p.A.
Immagini non riproducibili se non citando la fonte

Products

Code
Description
Color
  •
  • Orange
Qty
3D Model
F020012001
SRS.AC SU 50-53-90 PR10X10
Orange
Support 50-53-90 for extrusions
F020012001 - SRS.AC SU 50-53-90 PR10X10
Download CAD Model
F020012001
Support 50-53-90 for extrusions
F020012001 - SRS.AC SU 50-53-90 PR10X10
Download CAD Model

General Information

The function of this accessory is to support profiles with 10x10 mm and 10x15 mm cross-sections for the construction of connection and support structures in machines and plants.

By having 10x10 mm extrusions parallel at 20.5 mm centres, two extrusions of the indicated cross-sections can be connected in a perpendicular position.

The support is fastened using specific bolts with which it is supplied, and the supported extrusions are interlocked for a 25 mm section.
