PT-C-T - Trapezoidal casing

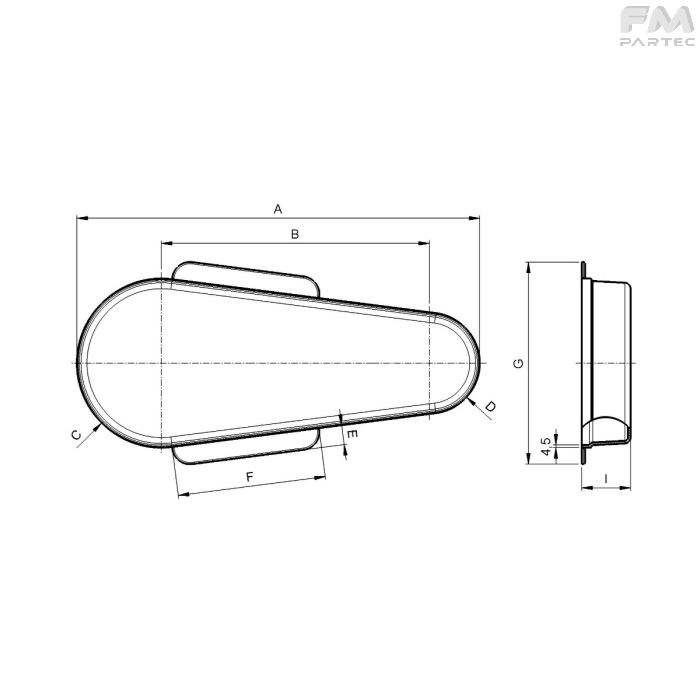

Disegno tecnico SKU PT-C-T
PT-C-T - Trapezoidal casing
© Copyright 2026
FM Partec S.p.A.
Immagini non riproducibili se non citando la fonte

Products

Code
Description
A
  •
  • 680
  • 587
B
  •
  • 452.50
  • 363.50
C
  •
  • 135
  • 133.50
D
  •
  • 77.50
  • 75
E
  •
  • 33
  • 30
F
  •
  • 250
  • 245
G
  •
  • 341
  • 339
I
  •
  • 82.30
  • 81.50
Color
  •
  • Orange
Qty
3D Model
F060001001
PT.CS L
680
452.50
135
77.50
33
250
341
82.30
Orange
Trapezoidal casing
F060001001 - PT.CS L
Download CAD Model
F060001002
PT.CS M
587
363.50
133.50
75
30
245
339
81.50
Orange
Trapezoidal casing
F060001002 - PT.CS M
Download CAD Model
F060001001
F060001002
Trapezoidal casing
F060001001 - PT.CS L
Download CAD Model
Trapezoidal casing
F060001002 - PT.CS M
Download CAD Model

General Information

Materials: PP GF

.

Temperature: +90°C -20°C

Product features:
The casing protects the drive part of the pulley assembly.
