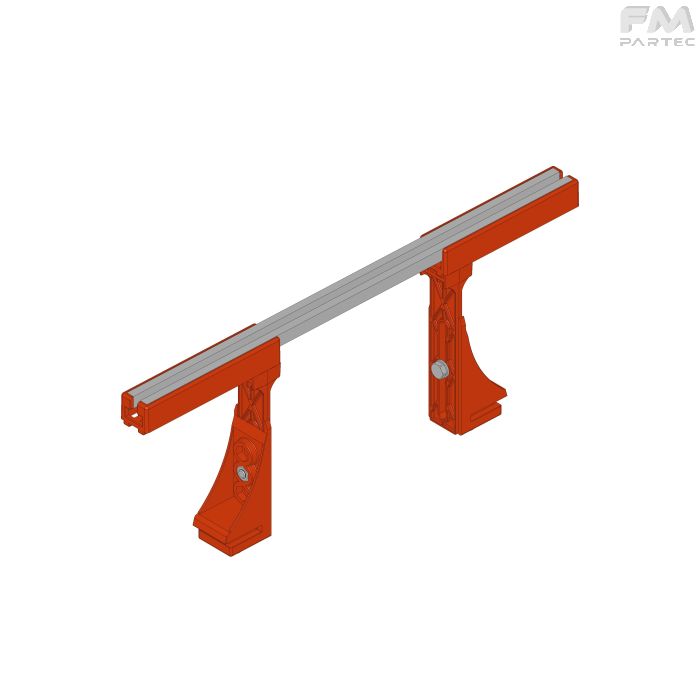

AL-AS-T3 - Support assembly with extension 193

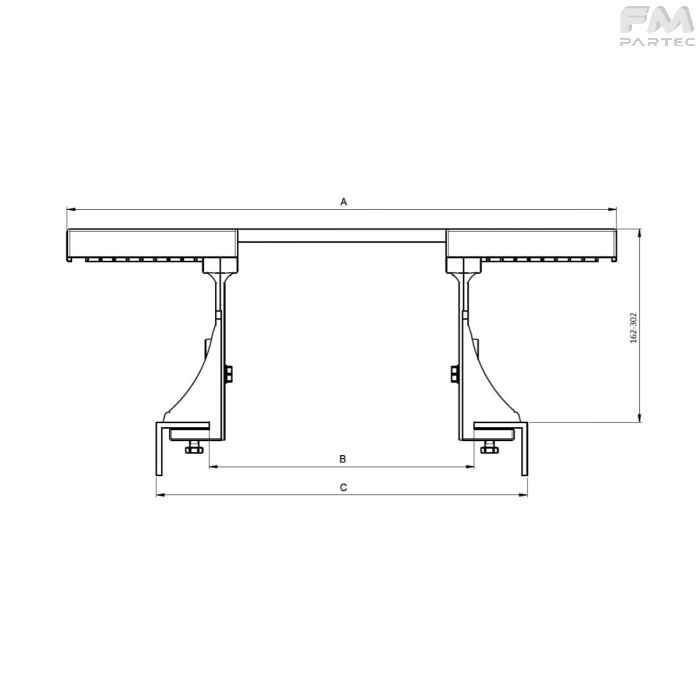

Disegno tecnico Sku: AL-AS-T3
AL-AS-T3 - Support assembly with extension 193
© Copyright 2026
FM Partec S.p.A.
Immagini non riproducibili se non citando la fonte

Products

Code
Description
A
  •
  • 368-620
  • 448-700
  • 548-800
  • 648-900
  • 748-1000
B
  •
  • 300
  • 380
  • 480
  • 580
  • 680
C
  •
  • 420
  • 500
  • 600
  • 700
  • 800
Qty
3D Model
F1600030620
SU.AS TYPE 3 L620 FR420
368-620
300
420
Support assembly with extension 193
F1600030620 - SU.AS TYPE 3 L620 FR420
Download CAD Model
F1600030700
SU.AS TYPE 3 L700 FR500
448-700
380
500
Support assembly with extension 193
F1600030700 - SU.AS TYPE 3 L700 FR500
Download CAD Model
F1600030800
SU.AS TYPE 3 L800 FR600
548-800
480
600
Support assembly with extension 193
F1600030800 - SU.AS TYPE 3 L800 FR600
Download CAD Model
F1600030900
SU.AS TYPE 3 L900 FR700
648-900
580
700
Support assembly with extension 193
F1600030900 - SU.AS TYPE 3 L900 FR700
Download CAD Model
F1600031000
SU.AS TYPE 3 L1000 FR800
748-1000
680
800
Support assembly with extension 193
F1600031000 - SU.AS TYPE 3 L1000 FR800
Download CAD Model
F1600030620
F1600030700
F1600030800
F1600030900
F1600031000
Support assembly with extension 193
F1600030620 - SU.AS TYPE 3 L620 FR420
Download CAD Model
Support assembly with extension 193
F1600030700 - SU.AS TYPE 3 L700 FR500
Download CAD Model
Support assembly with extension 193
F1600030800 - SU.AS TYPE 3 L800 FR600
Download CAD Model
Support assembly with extension 193
F1600030900 - SU.AS TYPE 3 L900 FR700
Download CAD Model
Support assembly with extension 193
F1600031000 - SU.AS TYPE 3 L1000 FR800
Download CAD Model
