SU-AS-T6 - Small Frame Assembly

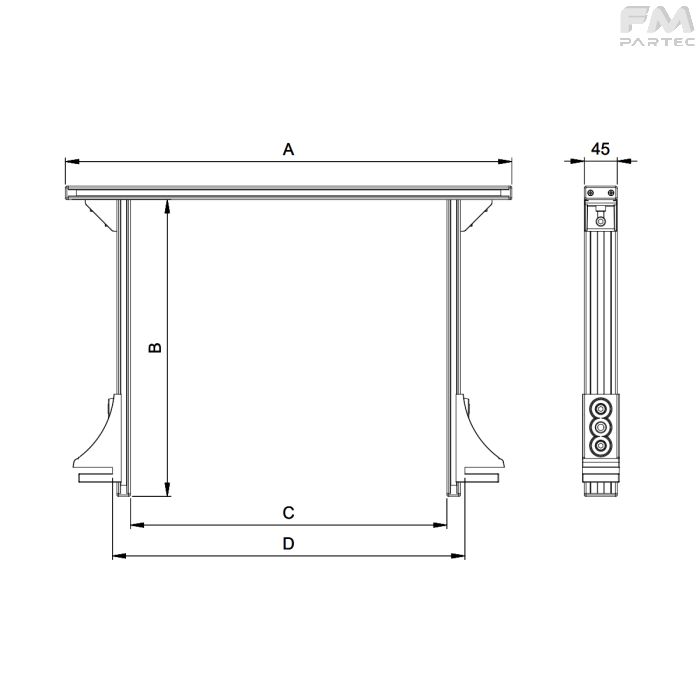

Disegno tecnico SKU SU-AS-T6
SU-AS-T6 - Small Frame Assembly
© Copyright 2026
FM Partec S.p.A.
Immagini non riproducibili se non citando la fonte

Products

Code
Description
A
  •
  • 508
  • 608
  • 708
  • 808
  • 1008
  • 1108
C
  •
  • 330
  • 430
  • 530
  • 630
  • 830
  • 930
D
  •
  • 380
  • 480
  • 580
  • 680
  • 880
  • 980
Qty
3D Model
F1600060500/400
SU.AS TYPE 6 L500-H400 FR500
508
330
380
Small Frame Assembly

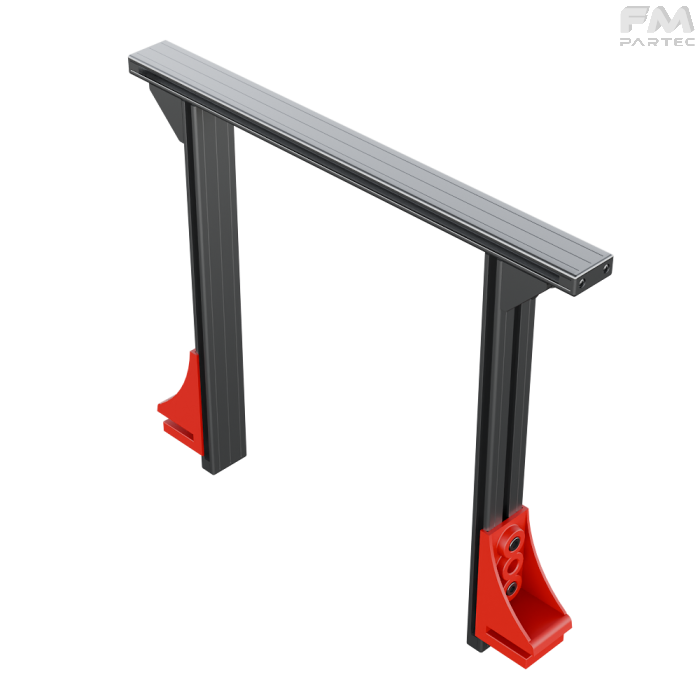

F1600060500/400 - SU.AS TYPE 6 L500-H400 FR500
Download CAD Model
F1600060600/400
SU.AS TYPE 6 L600-H400 FR600
608
430
480
Small Frame Assembly
F1600060600/400 - SU.AS TYPE 6 L600-H400 FR600
Download CAD Model
F1600060700/400
SU.AS TYPE 6 L700-H400 FR700
708
530
580
Small Frame Assembly
F1600060700/400 - SU.AS TYPE 6 L700-H400 FR700
Download CAD Model
F1600060800/400
SU.AS TYPE 6 L800-H400 FR800
808
630
680
Small Frame Assembly
F1600060800/400 - SU.AS TYPE 6 L800-H400 FR800
Download CAD Model
F1600061000/400
SU.AS TYPE 6 L1000-H400 FR1000
1008
830
880
Small Frame Assembly
F1600061000/400 - SU.AS TYPE 6 L1000-H400 FR1000
Download CAD Model
F1600061100/600
SU.AS TYPE 6 L1100-H600 FR1100
1108
930
980
Small Frame Assembly
F1600061100/600 - SU.AS TYPE 6 L1100-H600 FR1100
Download CAD Model
F1600060500/400
F1600060600/400
F1600060700/400
F1600060800/400
F1600061000/400
F1600061100/600
Small Frame Assembly
F1600060500/400 - SU.AS TYPE 6 L500-H400 FR500
Download CAD Model
Small Frame Assembly
F1600060600/400 - SU.AS TYPE 6 L600-H400 FR600
Download CAD Model
Small Frame Assembly
F1600060700/400 - SU.AS TYPE 6 L700-H400 FR700
Download CAD Model
Small Frame Assembly
F1600060800/400 - SU.AS TYPE 6 L800-H400 FR800
Download CAD Model
Small Frame Assembly
F1600061000/400 - SU.AS TYPE 6 L1000-H400 FR1000
Download CAD Model
Small Frame Assembly
F1600061100/600 - SU.AS TYPE 6 L1100-H600 FR1100
Download CAD Model

General Information

Material:
Support: ABS GF
Profile: anodised aluminium

Product features:
Useful assembly for fixing the Green Blow fan on top of a conveyor line with L 60x80 profile.
Recommended for frames up to 800 mm. All codes can be supplied with dimension B 400 or 600
