RCH-AC-400 - Single Roller Support

Material: POM

Temperature: +60°C -10°C

Product features:
This support can accommodate the rollers already in the catalogue, allowing the creation of a free-flowing system.
It is also designed with dimensional compatibility with load-bearing roller conveyors in mind, so that uniform running sections can be obtained if required.

Instructions for use:

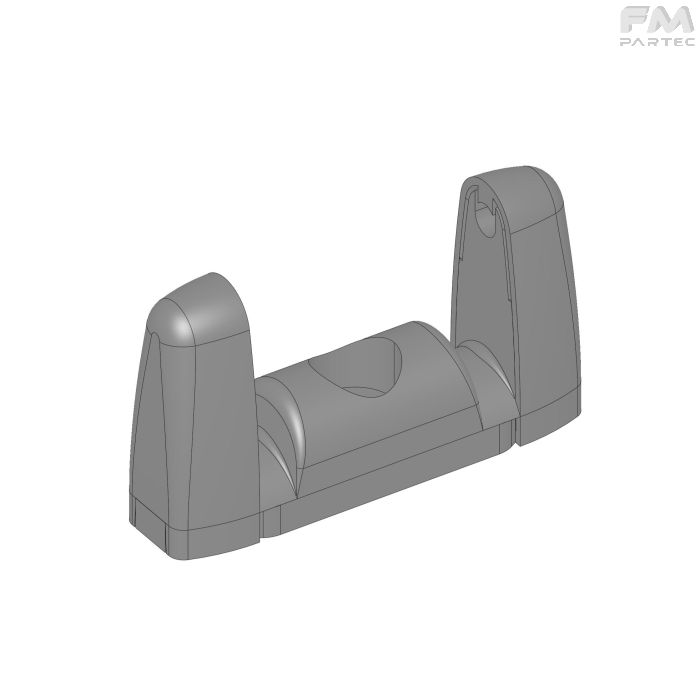

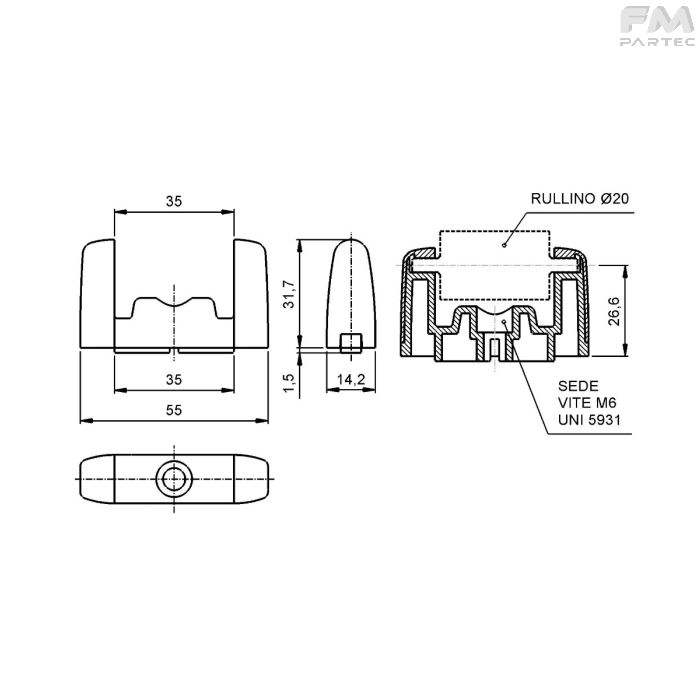

It consists of a main body, with an M6 screw seat, and two interlocking caps.
Once the support has been secured to the aluminium profile with the M6 bolt, the caps are removed either by hand or with the help of a screwdriver to pry them from the notches.
Take the chosen roller and fit it into the appropriate grooves.
Fit the caps back into place, they simply snap into place.
Check that the roller rotates properly.
