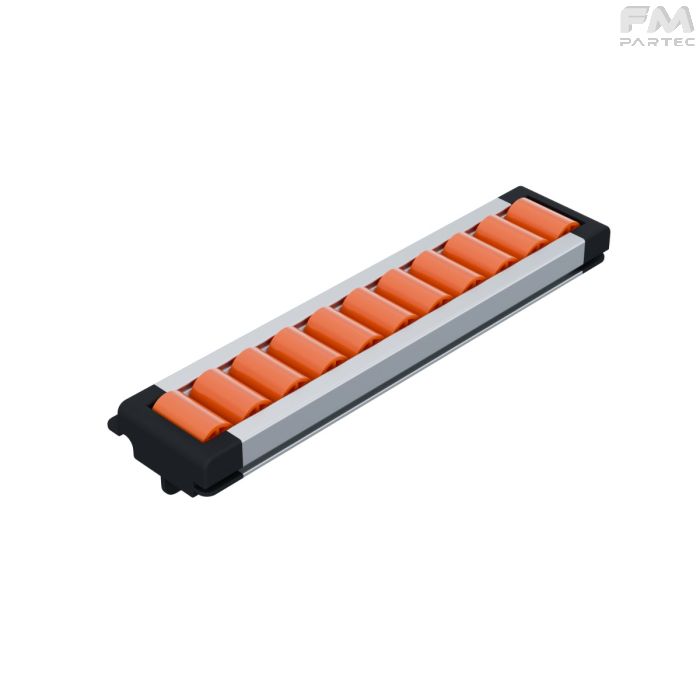

RCH-MDSH-PU22C8 - Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)

Disegno tecnico SKU RCH-MDSH-PU22C8
RCH-MDSH-PU22C8 - Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
© Copyright 2026
FM Partec S.p.A.
Immagini non riproducibili se non citando la fonte

Products

Code
Description
L
  •
  • 255
  • 497
  • 739
  • 981
  • 1223
  • 1465
  • 1707
  • 1949
  • 2191
  • 2433
  • 2675
  • 2917
  • 3159
  • 3401
  • 3643
  • 3885
  • 4127
  • 4369
  • 4611
  • 4853
  • 5095
  • 5337
  • 5579
  • 5821
Color
  •
  • Orange
Qty
3D Model
F149024011
RCH.MD P22 OR PU-PO TC L.255
255
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024011 - RCH.MD P22 OR PU-PO TC L.255
Download CAD Model
F149024022
RCH.MD P22 OR PU-PO TC L.497
497
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024022 - RCH.MD P22 OR PU-PO TC L.497
Download CAD Model
F149024033
RCH.MD P22 OR PU-PO TC L.739
739
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024033 - RCH.MD P22 OR PU-PO TC L.739
Download CAD Model
F149024044
RCH.MD P22 OR PU-PO TC L.981
981
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024044 - RCH.MD P22 OR PU-PO TC L.981
Download CAD Model
F149024055
RCH.MD P22 OR PU-PO TC L.1223
1223
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024055 - RCH.MD P22 OR PU-PO TC L.1223
Download CAD Model
F149024066
RCH.MD P22 OR PU-PO TC L.1465
1465
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024066 - RCH.MD P22 OR PU-PO TC L.1465
Download CAD Model
F149024077
RCH.MD P22 OR PU-PO TC L.1707
1707
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024077 - RCH.MD P22 OR PU-PO TC L.1707
Download CAD Model
F149024088
RCH.MD P22 OR PU-PO TC L.1949
1949
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024088 - RCH.MD P22 OR PU-PO TC L.1949
Download CAD Model
F149024099
RCH.MD P22 OR PU-PO TC L.2191
2191
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024099 - RCH.MD P22 OR PU-PO TC L.2191
Download CAD Model
F149024110
RCH.MD P22 OR PU-PO TC L.2433
2433
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024110 - RCH.MD P22 OR PU-PO TC L.2433
Download CAD Model
F149024121
RCH.MD P22 OR PU-PO TC L.2675
2675
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024121 - RCH.MD P22 OR PU-PO TC L.2675
Download CAD Model
F149024132
RCH.MD P22 OR PU-PO TC L.2917
2917
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024132 - RCH.MD P22 OR PU-PO TC L.2917
Download CAD Model
F149024143
RCH.MD P22 OR PU-PO TC L.3159
3159
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024143 - RCH.MD P22 OR PU-PO TC L.3159
Download CAD Model
F149024154
RCH.MD P22 OR PU-PO TC L.3401
3401
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024154 - RCH.MD P22 OR PU-PO TC L.3401
Download CAD Model
F149024165
RCH.MD P22 OR PU-PO TC L.3643
3643
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024165 - RCH.MD P22 OR PU-PO TC L.3643
Download CAD Model
F149024176
RCH.MD P22 OR PU-PO TC L.3885
3885
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024176 - RCH.MD P22 OR PU-PO TC L.3885
Download CAD Model
F149024187
RCH.MD P22 OR PU-PO TC L.4127
4127
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024187 - RCH.MD P22 OR PU-PO TC L.4127
Download CAD Model
F149024198
RCH.MD P22 OR PU-PO TC L.4369
4369
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024198 - RCH.MD P22 OR PU-PO TC L.4369
Download CAD Model
F149024209
RCH.MD P22 OR PU-PO TC L.4611
4611
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024209 - RCH.MD P22 OR PU-PO TC L.4611
Download CAD Model
F149024220
RCH.MD P22 OR PU-PO TC L.4853
4853
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024220 - RCH.MD P22 OR PU-PO TC L.4853
Download CAD Model
F149024231
RCH.MD P22 OR PU-PO TC L.5095
5095
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024231 - RCH.MD P22 OR PU-PO TC L.5095
Download CAD Model
F149024242
RCH.MD P22 OR PU-PO TC L.5337
5337
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024242 - RCH.MD P22 OR PU-PO TC L.5337
Download CAD Model
F149024253
RCH.MD P22 OR PU-PO TC L.5579
5579
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024253 - RCH.MD P22 OR PU-PO TC L.5579
Download CAD Model
F149024264
RCH.MD P22 OR PU-PO TC L.5821
5821
Orange
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024264 - RCH.MD P22 OR PU-PO TC L.5821
Download CAD Model
F149024011
F149024022
F149024033
F149024044
F149024055
F149024066
F149024077
F149024088
F149024099
F149024110
F149024121
F149024132
F149024143
F149024154
F149024165
F149024176
F149024187
F149024198
F149024209
F149024220
F149024231
F149024242
F149024253
F149024264
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024011 - RCH.MD P22 OR PU-PO TC L.255
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024022 - RCH.MD P22 OR PU-PO TC L.497
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024033 - RCH.MD P22 OR PU-PO TC L.739
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024044 - RCH.MD P22 OR PU-PO TC L.981
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024055 - RCH.MD P22 OR PU-PO TC L.1223
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024066 - RCH.MD P22 OR PU-PO TC L.1465
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024077 - RCH.MD P22 OR PU-PO TC L.1707
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024088 - RCH.MD P22 OR PU-PO TC L.1949
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024099 - RCH.MD P22 OR PU-PO TC L.2191
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024110 - RCH.MD P22 OR PU-PO TC L.2433
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024121 - RCH.MD P22 OR PU-PO TC L.2675
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024132 - RCH.MD P22 OR PU-PO TC L.2917
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024143 - RCH.MD P22 OR PU-PO TC L.3159
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024154 - RCH.MD P22 OR PU-PO TC L.3401
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024165 - RCH.MD P22 OR PU-PO TC L.3643
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024176 - RCH.MD P22 OR PU-PO TC L.3885
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024187 - RCH.MD P22 OR PU-PO TC L.4127
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024198 - RCH.MD P22 OR PU-PO TC L.4369
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024209 - RCH.MD P22 OR PU-PO TC L.4611
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024220 - RCH.MD P22 OR PU-PO TC L.4853
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024231 - RCH.MD P22 OR PU-PO TC L.5095
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024242 - RCH.MD P22 OR PU-PO TC L.5337
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024253 - RCH.MD P22 OR PU-PO TC L.5579
Download CAD Model
Modular Roller Conveyor - Short Heads - Orange Rollers (PU-PO)
F149024264 - RCH.MD P22 OR PU-PO TC L.5821
Download CAD Model

General Information

Materials:
Profile: anodised aluminium
Guides: POM
Roller: TPU
Pin: Brass

Temperature: +70°C -20°C

Product features:
This roller conveyor can be used to create both a side rail as well as a side containment.
It is possible to create an idle roller mat by placing several sections of roller conveyor side by side, according to the required width. The profile in fact has a specially designed structure to fit tightly with other bars.
The orange roller is particularly suitable for delicate or sharp pieces (e.g. glass) as it is made of TPU with a brass pin. In addition, the TPU roller protects the conveyed product from scratches or damage.
