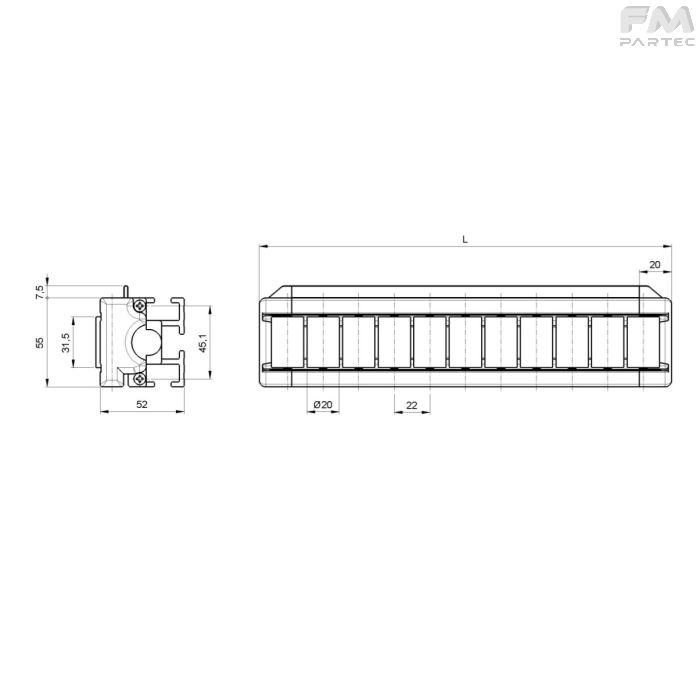

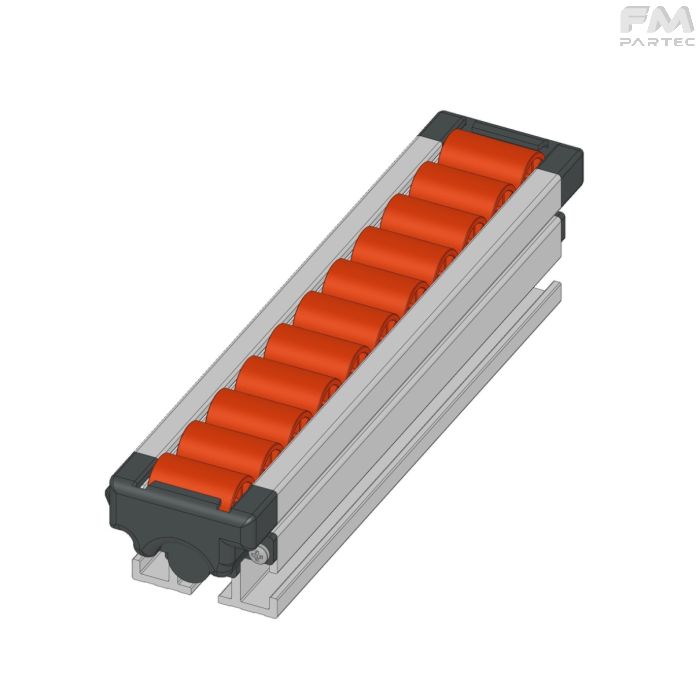

RCH-LB-PU22C8 - Load-bearing Roller Conveyor - Standard - Orange Roller (PU-PO)
FMPartec: Engineering & Moulding
FM Partec S.p.A.
FM Partec S.p.A.
General Information
Material:
Profile: anodised aluminium
Guides: POM
Roller: TPU
Pin: Brass
Temperature: +70°C -20°C
Product features:
The particularly rigid design of this roller conveyor is suitable for creating long roller mats without additional structures.
The design lends itself to easy fastening, allowing several roller conveyor modules, both load-bearing and modular, to be placed side by side.
The possibility exists to apply, after drilling the ends, hose clips or quick couplings, to introduce water or air, should the application require it.
The orange roller is particularly suitable for delicate or sharp pieces (e.g. glass) as it is made of TPU with a brass pin. In addition, the TPU roller protects the conveyed product from scratches or damage.
