PT-UCP-200 - Full protection for UCP with cut

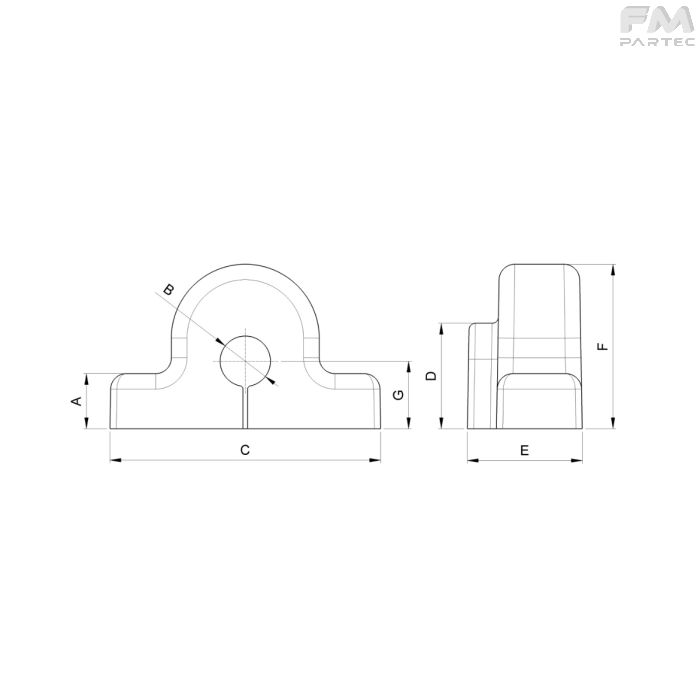

Disegno tecnico Sku: PT-UCP-200
PT-UCP-200 - Full protection for UCP with cut
© Copyright 2026
FM Partec S.p.A.
Immagini non riproducibili se non citando la fonte

Products

Code
Description
A
  •
  • 35
  • 34
  • 42
Ø B
  •
  • 32
  • 37
  • 40.50
  • 42
  • 52
C
  •
  • 172
  • 196
  • 215
D
  •
  • 67
  • 80
  • 93
E
  •
  • 73
  • 83
  • 94
F
  •
  • 104.50
  • 110
  • 128
G
  •
  • 42.90
  • 47.60
  • 49.20
  • 57.20
Color
  •
  • Orange
Qty
3D Model
F060008003C0
PT.UCP 206 H30 (pack100)
35
32
172
67
73
104.50
42.90
Orange
Full protection for UCP with cut
F060008003C0 - PT.UCP 206 H30 (pack100)
Download CAD Model
F060008004C0
PT.UCP 207 H35 (pack100)
35
37
172
67
73
104.50
47.60
Orange
Full protection for UCP with cut
F060008004C0 - PT.UCP 207 H35 (pack100)
Download CAD Model
F060008005C075
PT.UCP 208 H40 (pack75)
34
40.50
196
80
83
110
49.20
Orange
Full protection for UCP with cut
F060008005C075 - PT.UCP 208 H40 (pack75)
Download CAD Model
F060008006C100
PT.UCP 207 H40 (pac100)
35
42
172
67
73
104.50
47.60
Orange
Full protection for UCP with cut
F060008006C100 - PT.UCP 207 H40 (pac100)
Download CAD Model
F060008007C100
PT.UCP 207 H50 (pack100)
35
52
172
67
73
104.50
47.60
Orange
Full protection for UCP with cut
F060008007C100 - PT.UCP 207 H50 (pack100)
Download CAD Model
F060008008C050
PT.UCP 210 H50 (pack50)
42
52
215
93
94
128
57.20
Orange
Full protection for UCP with cut
F060008008C050 - PT.UCP 210 H50 (pack50)
Download CAD Model
F060008003C0
F060008004C0
F060008005C075
F060008006C100
F060008007C100
F060008008C050
Full protection for UCP with cut
F060008003C0 - PT.UCP 206 H30 (pack100)
Download CAD Model
Full protection for UCP with cut
F060008004C0 - PT.UCP 207 H35 (pack100)
Download CAD Model
Full protection for UCP with cut
F060008005C075 - PT.UCP 208 H40 (pack75)
Download CAD Model
Full protection for UCP with cut
F060008006C100 - PT.UCP 207 H40 (pac100)
Download CAD Model
Full protection for UCP with cut
F060008007C100 - PT.UCP 207 H50 (pack100)
Download CAD Model
Full protection for UCP with cut
F060008008C050 - PT.UCP 210 H50 (pack50)
Download CAD Model

General Information

Materials: PP GF

Temperature: +80°C -20°C

Product features:

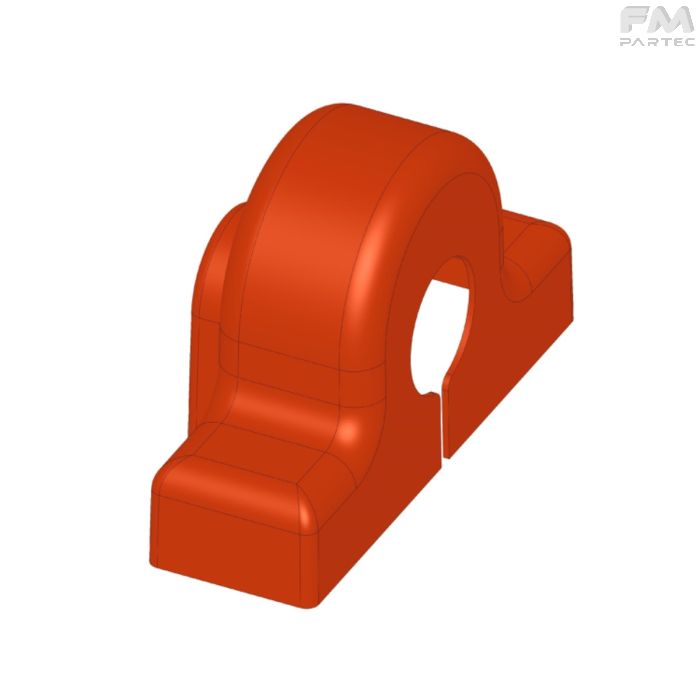

This guard protects the UCP support that creates the pulley assembly.
The cut allows the guard to be fitted quickly without the need for additional components.
