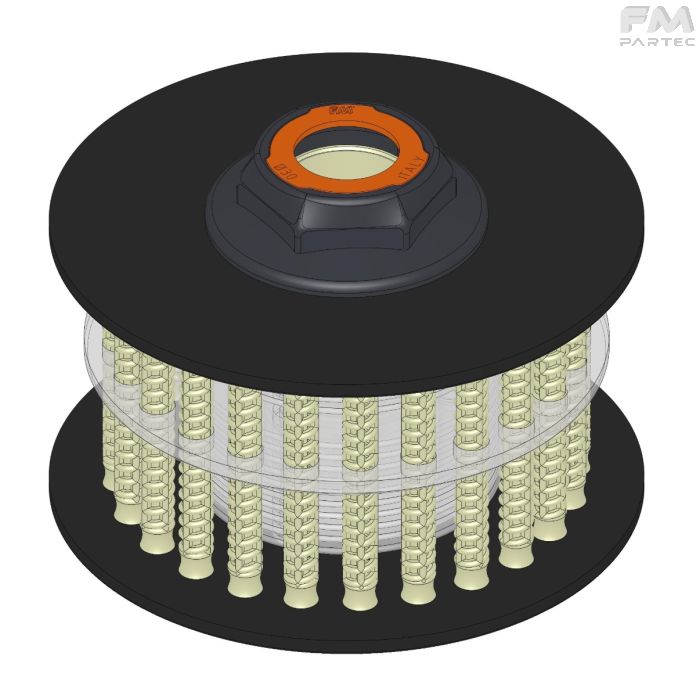

DP-STD-170S - Disc Pack D.170 with TPU Springs Standard Spool with 1 Intermediate Flange
FMPartec: Engineering & Moulding
DP-STD-170S - Disc Pack D.170 with TPU Springs Standard Spool with 1 Intermediate Flange
© Copyright 2026
FM Partec S.p.A.
FM Partec S.p.A.
Immagini non riproducibili se non citando la fonte
DP-STD-170S - Disc Pack D.170 with TPU Springs Standard Spool with 1 Intermediate Flange
© Copyright 2026
FM Partec S.p.A.
FM Partec S.p.A.
Immagini non riproducibili se non citando la fonte
General Information
Spool:
Materials: PA66 GF with brass insert
Discs: PC
Springs: TPU
Temperature: +70°C -20°C
Product features:
This disc pack is used when the glaze contains a high percentage of corundum, grit or other materials.
The springs allow for maximum atomisation.
Recommended speed : not exceeding 2,700/3,000 rpm.
