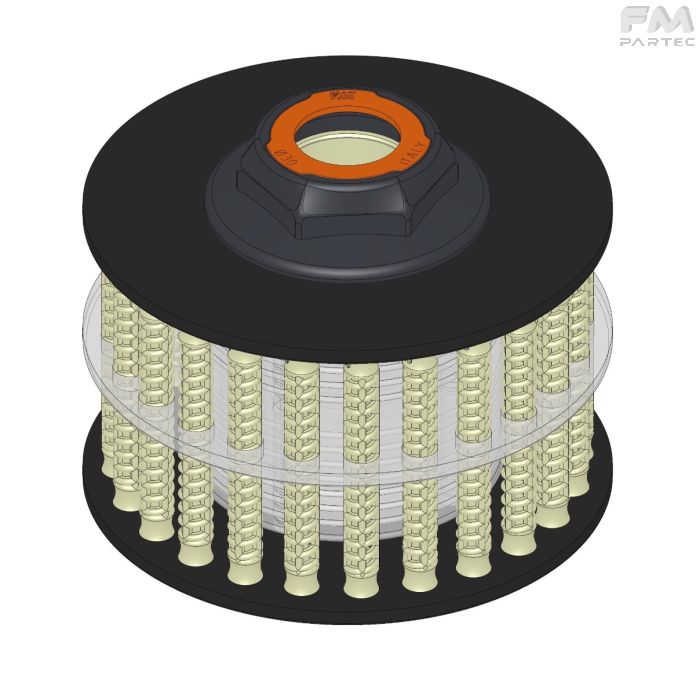

DP-STD-150SP1 - Disc Pack D.150 with Springs + 1 Intermediate Flange

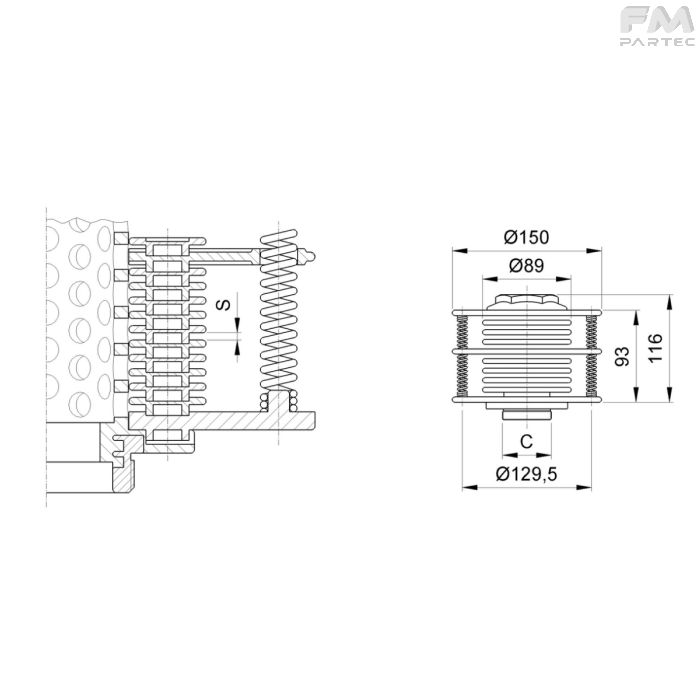

DISEGNO TECNICO SKU DP-STD-150SP1
DP-STD-150SP1 - Disc Pack D.150 with Springs + 1 Intermediate Flange
© Copyright 2026
FM Partec S.p.A.
Immagini non riproducibili se non citando la fonte

Products

Code
Description
C
  •
  • M49x1.5
  • M54x1.5
S
  •
  • 1
  • 2
  • 3
Color
  •
  • Black
Qty
3D Model
DP TDL D150 TH1 ST49 SPR.TPU
M49x1.5
1
Black
DP TDL D150 TH2 ST49 SPR.TPU
M49x1.5
2
Black
DP TDL D150 TH3 ST49 SPR.TPU
M49x1.5
3
Black
DP TDL D150 TH2 ST54 SPR.TPU
M54x1.5
2
Black

General Information

Spool
Materials: PA66 GF with brass insert
Discs: PC
Springs: TPU

Temperature: +70°C -20°C

Product features:
This disc pack is used when the glaze contains a high percentage of corundum, grit or other materials.
The springs allow for maximum atomisation.

Recommended speed : no more than 2,700/3,000 rpm.
If, on the other hand, you want a droplet effect the recommended speed ranges from 500 to 2,000 rpm. The speed is the parameter that determines the size of the drops desired on the tile, in fact as the speed increases the drip effect becomes finer.
