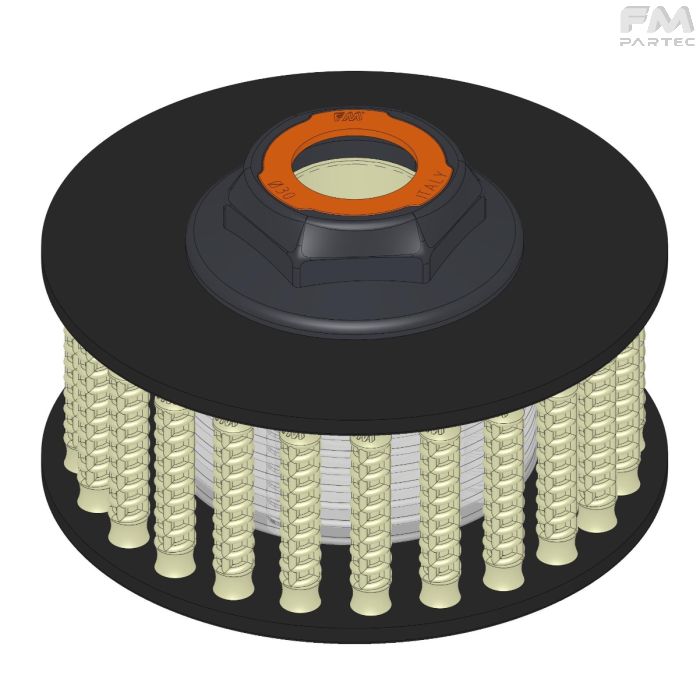

DP-STD-150S - Disc Pack D.150 with Lowered Spool Springs

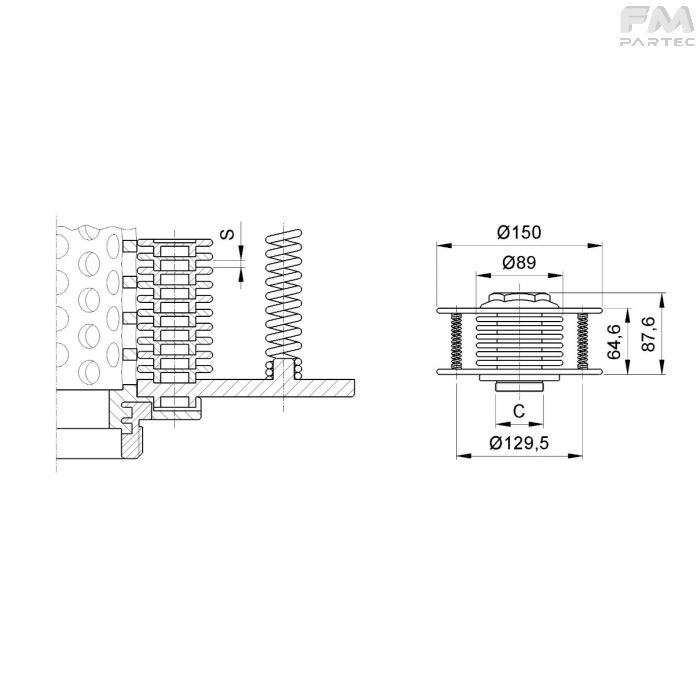

DISEGNO TECNICO SKU DP-STD-150S
DP-STD-150S - Disc Pack D.150 with Lowered Spool Springs
© Copyright 2026
FM Partec S.p.A.
Immagini non riproducibili se non citando la fonte

Products

Code
Description
C
  •
  • M49x1.5
S
  •
  • 2
Color
  •
  • Black
Qty
3D Model
DP TDL D.150 TH2 ST49 SH SPG
M49x1.5
2
Black
Disc Pack D.150 with Lowered Spool Springs
F070021002 - DP TDL D.150 TH2 ST49 SH SPG
Download CAD Model
Disc Pack D.150 with Lowered Spool Springs
F070021002 - DP TDL D.150 TH2 ST49 SH SPG
Download CAD Model

General Information

Spool
Materials: PA66 GF with brass insert
Discs: PC
Springs: TPU

Temperature: +70°C -20°C

Product features:
This disc pack is used when the glaze contains a high percentage of corundum, grit or other materials.
The springs allow for maximum atomisation.

Recommended speed : no more than 2,700/3,000 rpm.
If, on the other hand, you want a droplet effect the recommended speed ranges from 500 to 2,000 rpm. The speed is the parameter that determines the size of the drops desired on the tile, in fact as the speed increases the drip effect becomes finer.

Documents

REQUEST INFORMATION

If you would like to receive more information about the product Disc Pack D.150 with Lowered Spool Springs, please fill out the form below.
We will get back to you shortly.
