Al-CN-CL100 - Cylindrical Fitting 100 M

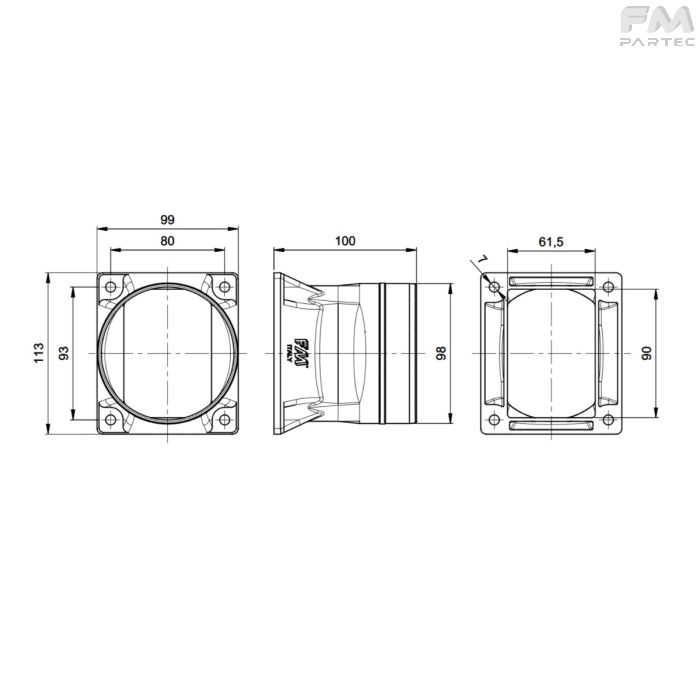

Disegno tecnico Sku: Al-CN-CL100
Al-CN-CL100 - Cylindrical Fitting 100 M
© Copyright 2026
FM Partec S.p.A.
Immagini non riproducibili se non citando la fonte

Products

Code
Description
Color
  •
  • Green
  • Grey
  • Visual Blue
Qty
3D Model
F102519
AL.CN CL 100 M GR
Green
F102519/A
AL.CN CL 100 M GY
Grey
Cylindrical Fitting 100 M
F102519/A - AL.CN CL 100 M GY
Download CAD Model
F102519/B
AL.CN CL 100 M VB
Visual Blue
Cylindrical Fitting 100 M
F102519/B - AL.CN CL 100 M VB
Download CAD Model
F102519
F102519/A
F102519/B
Cylindrical Fitting 100 M
F102519/A - AL.CN CL 100 M GY
Download CAD Model
Cylindrical Fitting 100 M
F102519/B - AL.CN CL 100 M VB
Download CAD Model

General Information

Material: ABS GF

Temperature: +80°C -20°C

Product features:

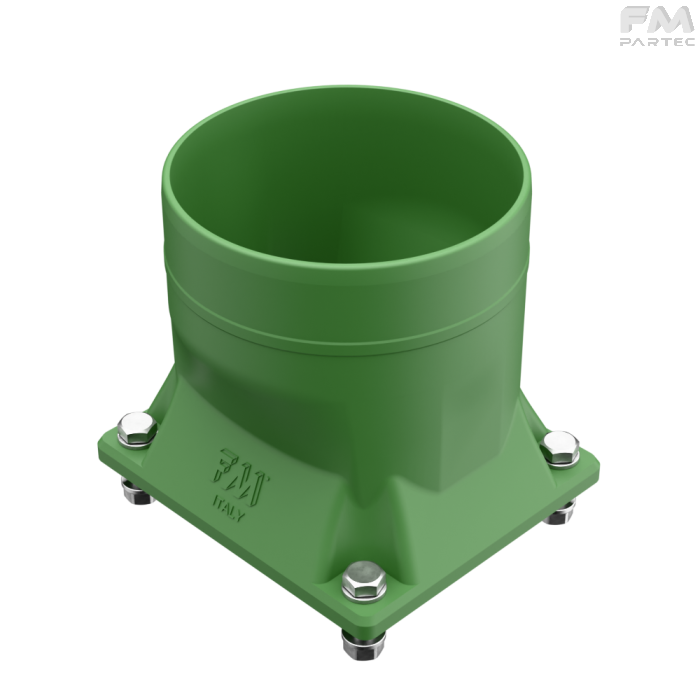

A cylindrical fan outlet coupling which, in combination with the other thermoplastic material couplings, allows the air to be channelled to the diffuser/blade.

Documents

REQUEST INFORMATION

If you would like to receive more information about the product Cylindrical Fitting 100 M, please fill out the form below.
We will get back to you shortly.
