F120029103 - AL.GB HYD COMPLETE

Quantità minima ordinabile: 1
Quantità per confezione: 0
Code
F120029103
Description
AL.GB HYD COMPLETE
Color
Grey

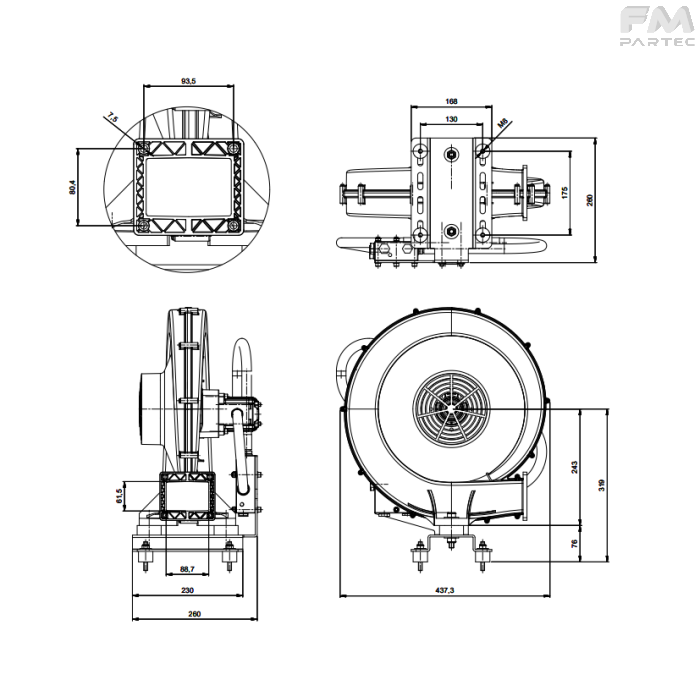

Disegno tecnico Sku: F120029103
F120029103 - AL.GB HYD COMPLETE
© Copyright 2026
FM Partec S.p.A.
Immagini non riproducibili se non citando la fonte

Caratteristiche

Code F120029103
Description AL.GB HYD COMPLETE
Color Grey
GreenBlow fans - HYDRAULIC
F120029103 - AL.GB HYD COMPLETE
Download CAD Model

General Information

Fan features:

  • Hydraulic motor without drainage
  • Complete with restrictor valve to limit inlet flow to 16 litres/min
  • Including anti-vibration support
  • Average air outlet speed 65 m/s

Hydraulically driven fan complete with flow restrictor valve. Comes complete with assembled bracket and pressure gauge (to check that pressure does not exceed 5 bar). To start the fan simply connect the IN and OUT input directly.

Two different types of anti-vibration mounts are also included, to compensate for external movements and vibrations, especially when installed on mobile machines. In the latter case, it is recommended to connect a hose to the delivery port.

Ideal solution for the agricultural and naval sectors.
