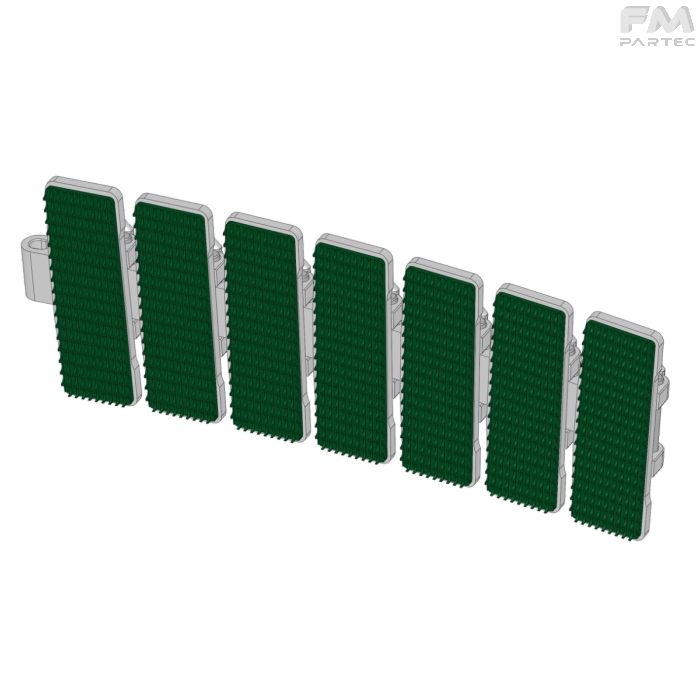

CH-C-N38 - Chain 38.1 N

Disegno tecnico SKU CH-C-N38
CH-C-N38 - Chain 38.1 N
© Copyright 2026
FM Partec S.p.A.
Immagini non riproducibili se non citando la fonte

Products

Code
Description
B
  •
  • MIN 390
  • MIN 420
  • MIN 470
C
  •
  • 60
  • 83
  • 100
  • 120
  • 150
  • 180
  • 250
  • 320
Pins
  •
  • Acciaio ZNC
  • Acciaio inox
Color
  •
  • White
Qty
3D Model
F010016001
CH.C. N38,1 60 RC
MIN 390
60
Acciaio ZNC
White
Chain 38.1 N
F010016001 - CH.C. N38,1 60 RC
Download CAD Model
F010016003
CH.C. N38,1 83 RC
MIN 390
83
Acciaio ZNC
White
Chain 38.1 N
F010016003 - CH.C. N38,1 83 RC
Download CAD Model
F010016004
CH.C. N38,1 83 RC IP
MIN 390
83
Acciaio inox
White
Chain 38.1 N
F010016004 - CH.C. N38,1 83 RC IP
Download CAD Model
F010016005
CH.C. N38,1 100 RC
MIN 390
100
Acciaio ZNC
White
Chain 38.1 N
F010016005 - CH.C. N38,1 100 RC
Download CAD Model
F010016007
CH.C. N38,1 120 RC
MIN 390
120
Acciaio ZNC
White
Chain 38.1 N
F010016007 - CH.C. N38,1 120 RC
Download CAD Model
F010016009
CH.C. N38,1 150 RC
MIN 390
150
Acciaio ZNC
White
Chain 38.1 N
F010016009 - CH.C. N38,1 150 RC
Download CAD Model
F010016011
CH.C. N38,1 180 RC
MIN 390
180
Acciaio ZNC
White
Chain 38.1 N
F010016011 - CH.C. N38,1 180 RC
Download CAD Model
F010016013
CH.C. N38,1 250 RC
MIN 420
250
Acciaio ZNC
White
Chain 38.1 N
F010016013 - CH.C. N38,1 250 RC
Download CAD Model
F010016015
CH.C. N38,1 320 RC
MIN 470
320
Acciaio ZNC
White
Chain 38.1 N
F010016015 - CH.C. N38,1 320 RC
Download CAD Model
F010016001
F010016003
F010016004
F010016005
F010016007
F010016009
F010016011
F010016013
F010016015
Chain 38.1 N
F010016001 - CH.C. N38,1 60 RC
Download CAD Model
Chain 38.1 N
F010016003 - CH.C. N38,1 83 RC
Download CAD Model
Chain 38.1 N
F010016004 - CH.C. N38,1 83 RC IP
Download CAD Model
Chain 38.1 N
F010016005 - CH.C. N38,1 100 RC
Download CAD Model
Chain 38.1 N
F010016007 - CH.C. N38,1 120 RC
Download CAD Model
Chain 38.1 N
F010016009 - CH.C. N38,1 150 RC
Download CAD Model
Chain 38.1 N
F010016011 - CH.C. N38,1 180 RC
Download CAD Model
Chain 38.1 N
F010016013 - CH.C. N38,1 250 RC
Download CAD Model
Chain 38.1 N
F010016015 - CH.C. N38,1 320 RC
Download CAD Model

General Information

Slat material: POM

.

Temperature: +60°C -10°C

Product features:
Curved chain with rubber honeycomb coating.

Documents

REQUEST INFORMATION

If you would like to receive more information about the product Chain 38.1 N, please fill out the form below.
We will get back to you shortly.
