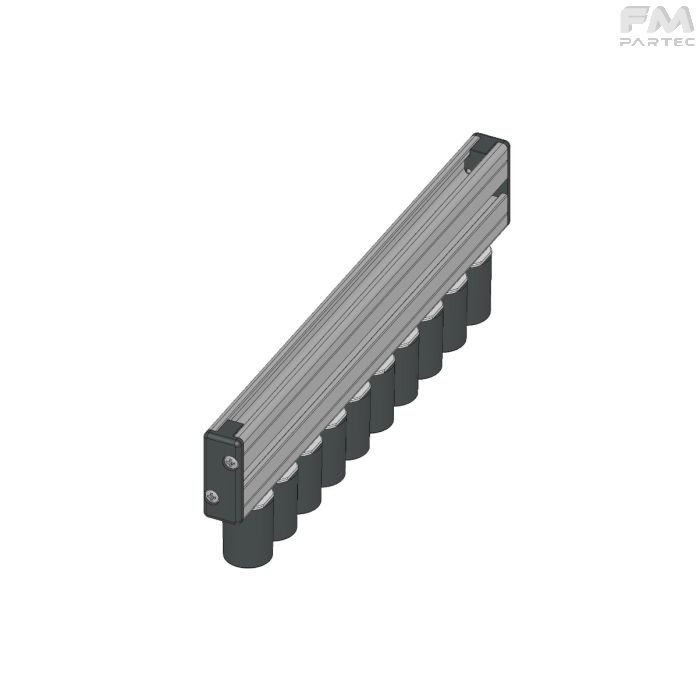

RCV-CR45-PU24C3 - Cantilever roller conveyor - Standard - TPU rollers (PU-PP)
FMPartec: Engineering & Moulding
FM Partec S.p.A.
FM Partec S.p.A.
General Information
Material:
Profile: anodised aluminium
Guides: POM
Roller: TPU shore 92A
Temperature: +70°C -20°C
Product features:
This roller conveyor can be used to create lateral containment of the conveyed product.
Profile features:
This profile has 4 slots that are useful both for inserting the roller modules and for creating their fastening to the machine, which can be resolved using various supports in the catalogue.
These can also be used to mount other roller modules, transforming the roller conveyor into single, right-angled, double, double 90° and triple.
Roller module features:
This roller module is the most basic in the line.
The roller is fitted directly onto the POM rail and cannot be replaced without replacing the complete module.
This module is suitable for light loads and minimal impact.
Suggestions: Avoid cleaning with ethyl alcohol and/or acetone
