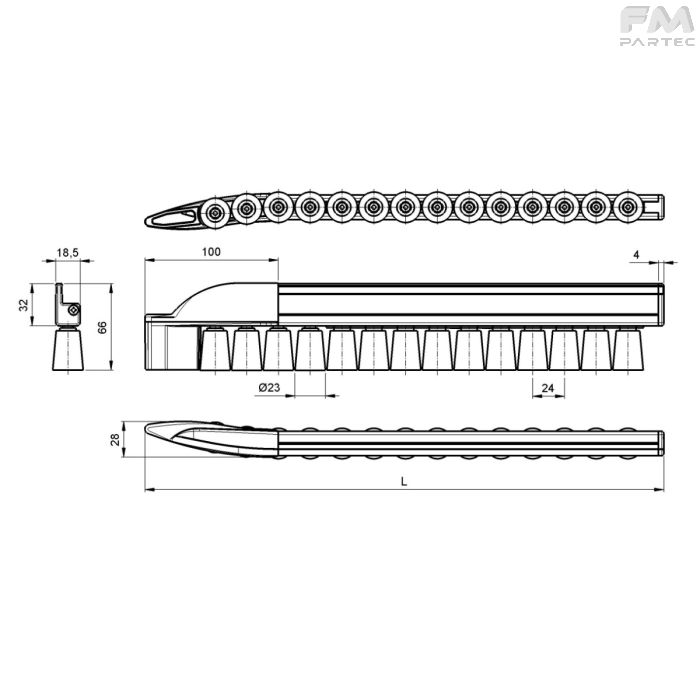

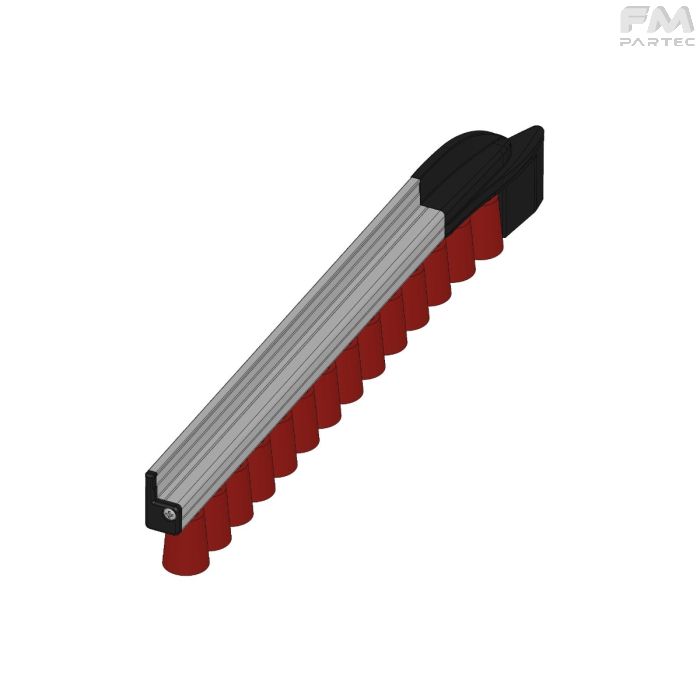

RCV-CR32CLE-SIL24C5 - Cantilever roller conveyor - LH infeed - Tapered rollers Silicone Sh 20A P.24

Material:
Profile: anodised aluminium
Guides: POM
Roller body: PA6
Roller coating: Silicone shore 40A
Pin: Stainless steel M4 screw

Product features:
This roller conveyor can be used to create lateral containment of the conveyed product.
The infeed heads prevent the material from impacting as it enters and exits the roller conveyor

Profile features:
This profile has 1 vertical socket which is useful for creating the attachment to the machine, which can be resolved with various supports in the catalogue.

Roller module features:
This roller module features a silicone roller attached to the guide by means of an M6 stainless steel screw.
This allows each individual roller to be replaced when worn and provides greater impact resistance.
The tapered roller is particularly recommended in the case of conveyor belts (e.g. digital printers) as it allows the upper surface of the product not to be touched in the case of fresh paint/glaze, due to its natural inclination.
In particular, this silicone roller, of medium hardness, is particularly suitable for very sharp, brittle or raw products (e.g. green tiles).

Suggestions: Avoid cleaning with ethyl alcohol and/or acetone
