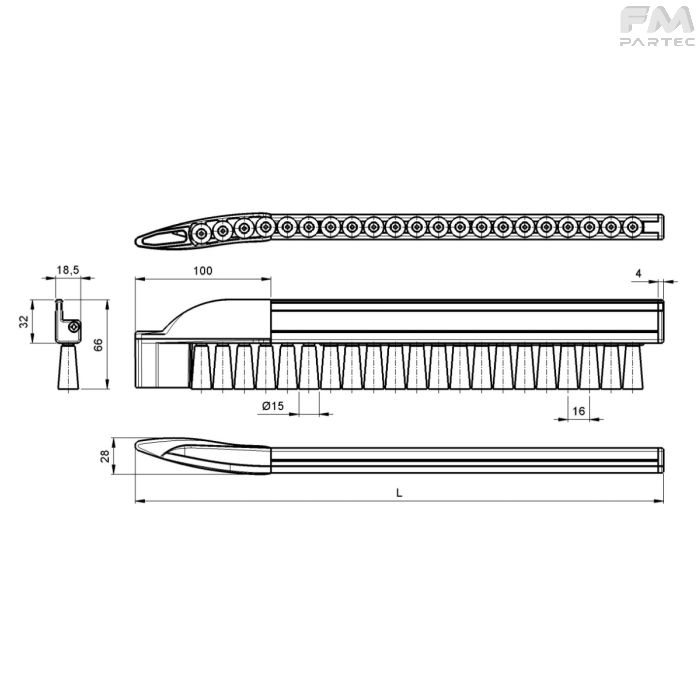

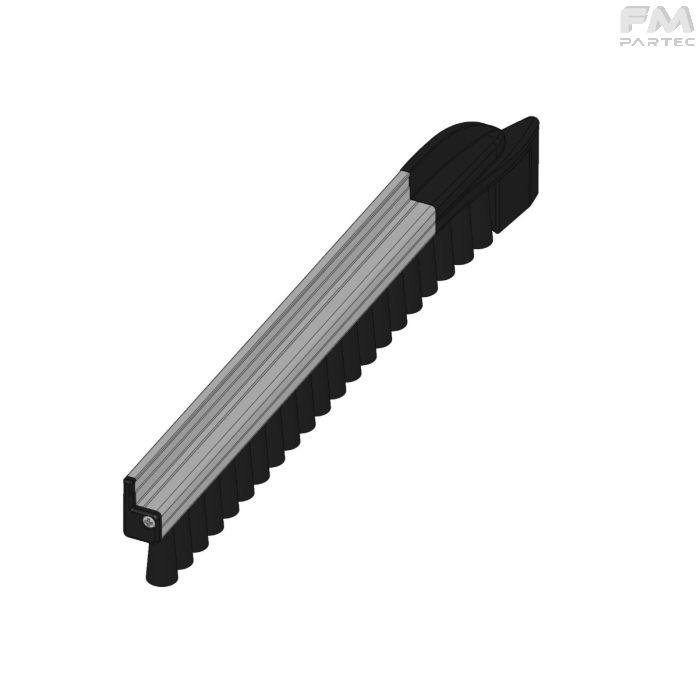

RCV-CR32CLE-PU16C1 - Cantilever roller conveyor - LH infeed - Tapered rollers P.16

Material:
Profile: anodised aluminium
Guides: POM
Roller: TPU shore 92A
Pin: M4 Stainless Steel Screw

Temperature: +70°C -20°C

Product features:
This roller conveyor can be used to create lateral containment of the conveyed product.
The infeed heads prevent the material from impacting as it enters and exits the roller conveyor.

Profile features:
This profile has 1 vertical socket, which can be used to create the attachment to the machine, which can be resolved with various supports available in the catalogue.

Roller module features :
This roller module features a solid TPU roller attached to the rail by means of an M4 stainless steel screw.
This allows each individual roller to be replaced when worn and provides greater impact resistance.
This small-diameter roller is suitable for small products or slats/skirting boards as it reduces the gap between one roller and the next.
In addition, the tapered version of the roller is particularly recommended in the case of conveyor belts (e.g. digital printers) as it allows the upper surface of the product not to be touched in the case of fresh paint/glaze, due to its natural tilt.

Suggestions: Avoid cleaning with ethyl alcohol and/or acetone
