RCH-LB-PA22C6 - Rulliera portante - standard - rullini blu (PA)

FMPartec: Engineering & Moulding

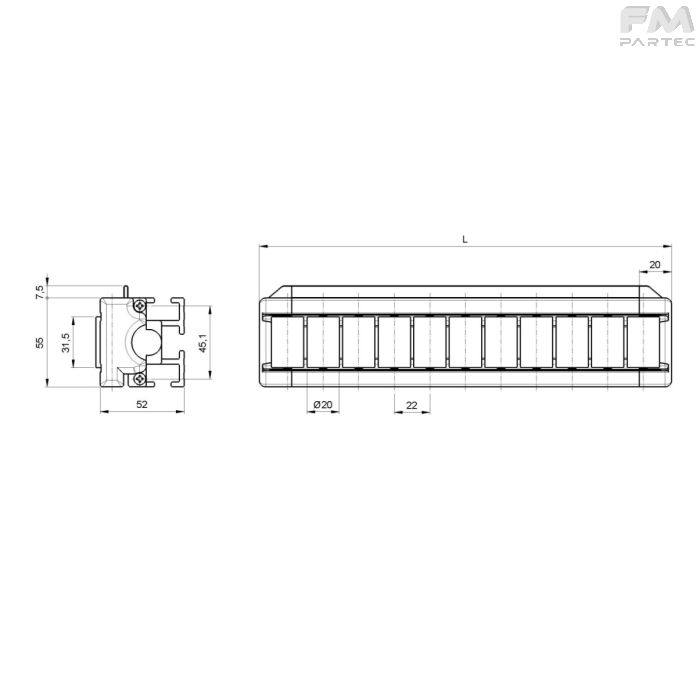

Disegno tecnico SKU RCH-LB-PA22C6

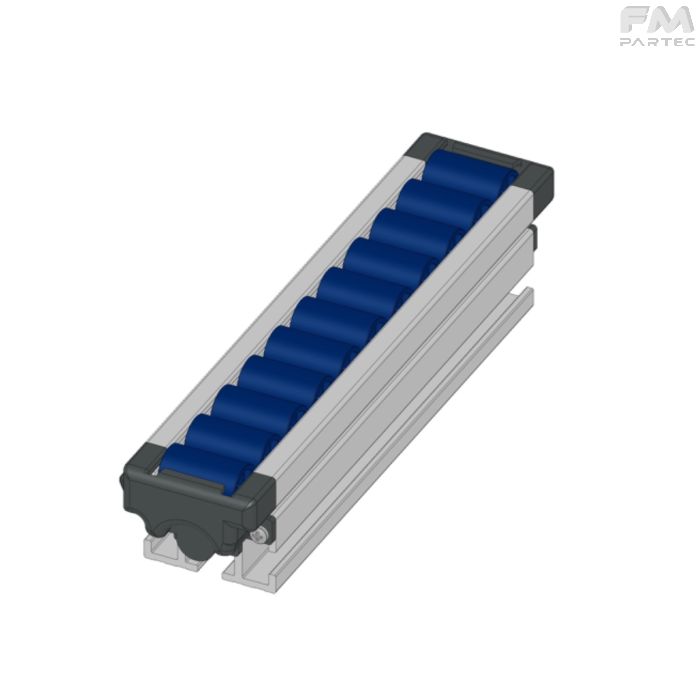

RCH-LB-PA22C6 - Rulliera portante - standard - rullini blu (PA)
© Copyright 2026
FM Partec S.p.A.
Immagini non riproducibili se non citando la fonte

Seleziona articolo

Codice
Descrizione
L
  •
  • 255
  • 467
  • 739
  • 981
  • 1223
  • 1465
  • 1707
  • 1949
  • 2191
  • 2433
  • 2675
  • 2917
  • 3159
  • 3401
  • 3643
  • 3885
  • 4127
  • 4369
  • 4611
  • 4853
  • 5095
  • 5337
  • 5579
  • 5821
Colore
  •
  • Blu
Qtà
3D Model
RCH.LB P22 VB PA L255
255
Blu
Rulliera portante - standard - rullini blu (PA)

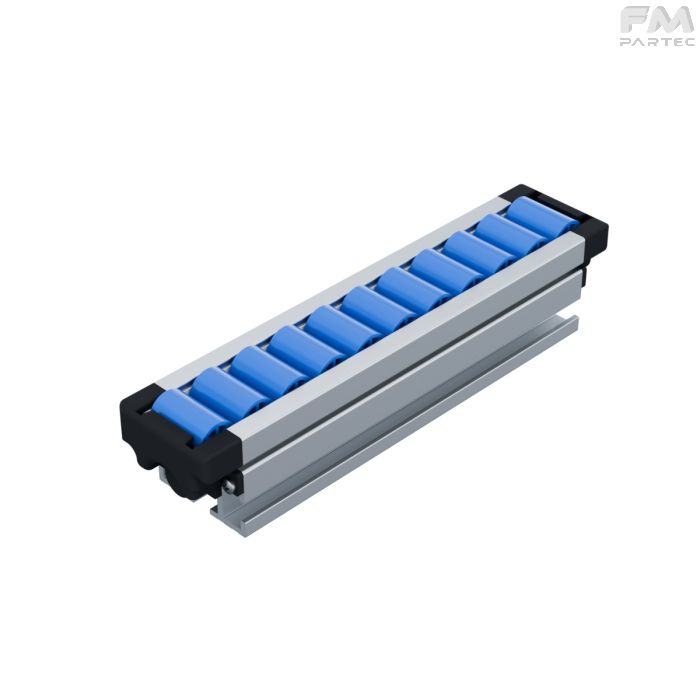

F140035011 - RCH.LB P22 VB PA L255
Download CAD Model
RCH.LB P22 VB PA L497
467
Blu
Rulliera portante - standard - rullini blu (PA)
F140035022 - RCH.LB P22 VB PA L497
Download CAD Model
RCH.LB P22 VB PA L739
739
Blu
Rulliera portante - standard - rullini blu (PA)
F140035033 - RCH.LB P22 VB PA L739
Download CAD Model
RCH.LB P22 VB PA L981
981
Blu
Rulliera portante - standard - rullini blu (PA)
F140035044 - RCH.LB P22 VB PA L981
Download CAD Model
RCH.LB P22 VB PA L1223
1223
Blu
Rulliera portante - standard - rullini blu (PA)
F140035055 - RCH.LB P22 VB PA L1223
Download CAD Model
RCH.LB P22 VB PA L1465
1465
Blu
Rulliera portante - standard - rullini blu (PA)
F140035066 - RCH.LB P22 VB PA L1465
Download CAD Model
RCH.LB P22 VB PA L1707
1707
Blu
Rulliera portante - standard - rullini blu (PA)
F140035077 - RCH.LB P22 VB PA L1707
Download CAD Model
RCH.LB P22 VB PA L1949
1949
Blu
Rulliera portante - standard - rullini blu (PA)
F140035088 - RCH.LB P22 VB PA L1949
Download CAD Model
RCH.LB P22 VB PA L2191
2191
Blu
Rulliera portante - standard - rullini blu (PA)
F140035099 - RCH.LB P22 VB PA L2191
Download CAD Model
RCH.LB P22 VB PA L2433
2433
Blu
Rulliera portante - standard - rullini blu (PA)
F140035110 - RCH.LB P22 VB PA L2433
Download CAD Model
RCH.LB P22 VB PA L2675
2675
Blu
Rulliera portante - standard - rullini blu (PA)
F140035121 - RCH.LB P22 VB PA L2675
Download CAD Model
RCH.LB P22 VB PA L2917
2917
Blu
Rulliera portante - standard - rullini blu (PA)
F140035132 - RCH.LB P22 VB PA L2917
Download CAD Model
RCH.LB P22 VB PA L3159
3159
Blu
Rulliera portante - standard - rullini blu (PA)
F140035143 - RCH.LB P22 VB PA L3159
Download CAD Model
RCH.LB P22 VB PA L3401
3401
Blu
Rulliera portante - standard - rullini blu (PA)
F140035154 - RCH.LB P22 VB PA L3401
Download CAD Model
RCH.LB P22 VB PA L3643
3643
Blu
Rulliera portante - standard - rullini blu (PA)
F140035165 - RCH.LB P22 VB PA L3643
Download CAD Model
RCH.LB P22 VB PA L3885
3885
Blu
Rulliera portante - standard - rullini blu (PA)
F140035176 - RCH.LB P22 VB PA L3885
Download CAD Model
RCH.LB P22 VB PA L4127
4127
Blu
Rulliera portante - standard - rullini blu (PA)
F140035187 - RCH.LB P22 VB PA L4127
Download CAD Model
RCH.LB P22 VB PA L4369
4369
Blu
Rulliera portante - standard - rullini blu (PA)
F140035198 - RCH.LB P22 VB PA L4369
Download CAD Model
RCH.LB P22 VB PA L4611
4611
Blu
Rulliera portante - standard - rullini blu (PA)
F140035209 - RCH.LB P22 VB PA L4611
Download CAD Model
RCH.LB P22 VB PA L4853
4853
Blu
Rulliera portante - standard - rullini blu (PA)
F140035220 - RCH.LB P22 VB PA L4853
Download CAD Model
RCH.LB P22 VB PA L5095
5095
Blu
Rulliera portante - standard - rullini blu (PA)
F140035231 - RCH.LB P22 VB PA L5095
Download CAD Model
RCH.LB P22 VB PA L5337
5337
Blu
Rulliera portante - standard - rullini blu (PA)
F140035242 - RCH.LB P22 VB PA L5337
Download CAD Model
RCH.LB P22 VB PA L5579
5579
Blu
Rulliera portante - standard - rullini blu (PA)
F140035253 - RCH.LB P22 VB PA L5579
Download CAD Model
RCH.LB P22 VB PA L5821
5821
Blu
Rulliera portante - standard - rullini blu (PA)
F140035264 - RCH.LB P22 VB PA L5821
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035011 - RCH.LB P22 VB PA L255
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035022 - RCH.LB P22 VB PA L497
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035033 - RCH.LB P22 VB PA L739
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035044 - RCH.LB P22 VB PA L981
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035055 - RCH.LB P22 VB PA L1223
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035066 - RCH.LB P22 VB PA L1465
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035077 - RCH.LB P22 VB PA L1707
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035088 - RCH.LB P22 VB PA L1949
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035099 - RCH.LB P22 VB PA L2191
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035110 - RCH.LB P22 VB PA L2433
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035121 - RCH.LB P22 VB PA L2675
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035132 - RCH.LB P22 VB PA L2917
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035143 - RCH.LB P22 VB PA L3159
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035154 - RCH.LB P22 VB PA L3401
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035165 - RCH.LB P22 VB PA L3643
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035176 - RCH.LB P22 VB PA L3885
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035187 - RCH.LB P22 VB PA L4127
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035198 - RCH.LB P22 VB PA L4369
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035209 - RCH.LB P22 VB PA L4611
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035220 - RCH.LB P22 VB PA L4853
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035231 - RCH.LB P22 VB PA L5095
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035242 - RCH.LB P22 VB PA L5337
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035253 - RCH.LB P22 VB PA L5579
Download CAD Model
Rulliera portante - standard - rullini blu (PA)
F140035264 - RCH.LB P22 VB PA L5821
Download CAD Model

Specifiche tecniche

Materiali:
Profilo: alluminio anodizzato
Guide: POM
Rullino con perno: PA

Temperatura: +90°C -20°C

Caratteristiche prodotto:
La struttura particolarmente rigida di questa rulliera è adatta per creare tappeti di rullini lunghi, senza ulteriori strutture.
La conformazione si presta ad un fissaggio agevole, permettendo di affiancare piu' moduli di rulliera sia portante sia modulare, tra loro.
Offre la possibilita' di applicare, previa perforazione delle testate, attacchi porta gomma o attacchi rapidi, per immettere acqua o aria ,se l'impiego lo richiedesse.
Il rullino blu è il più economico e meno resistente in quanto è totalmente in plastica.
